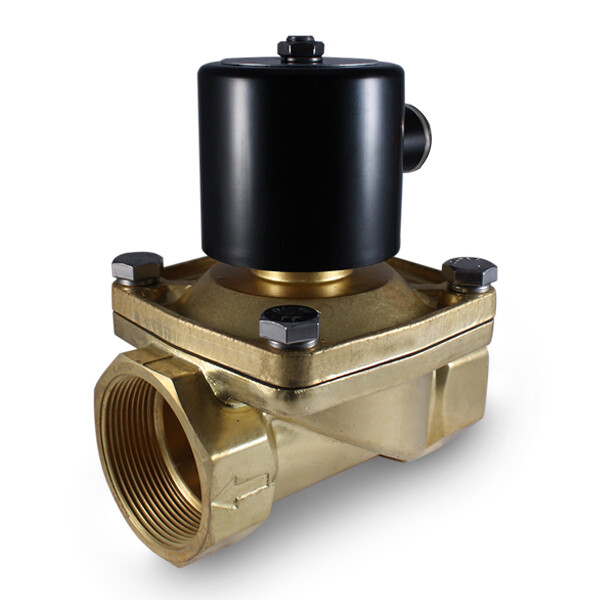

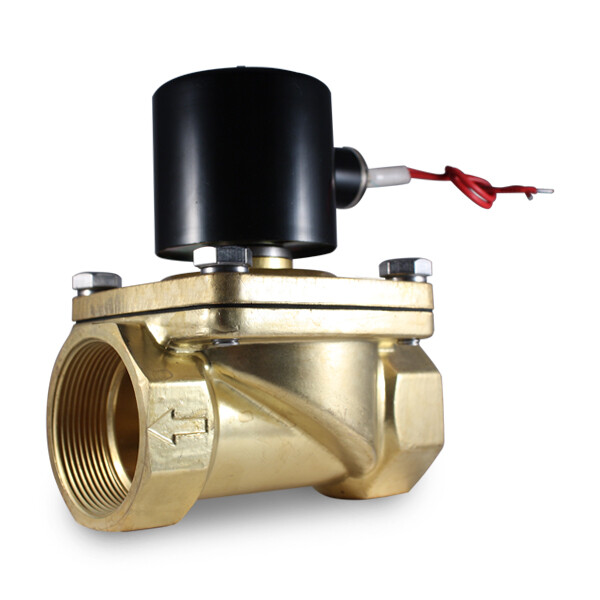

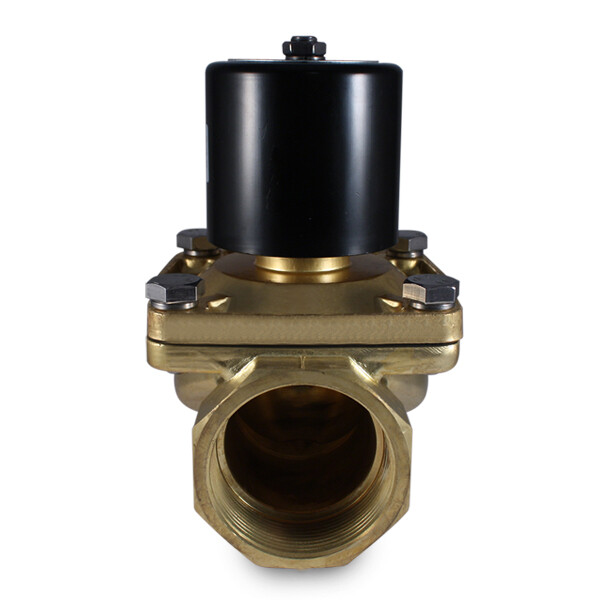

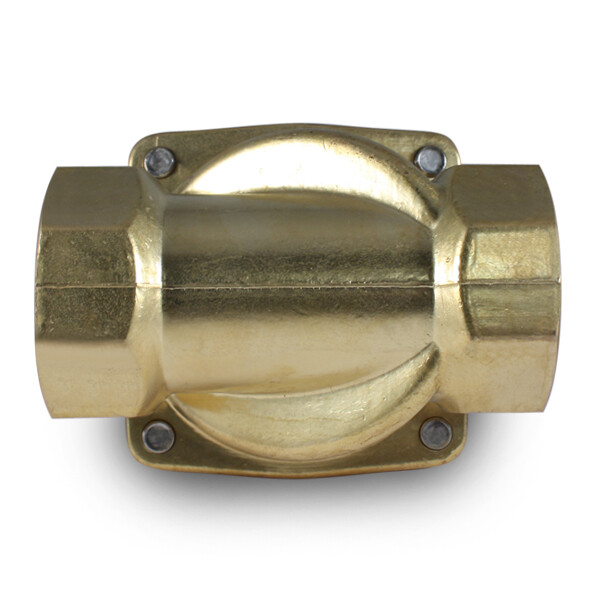

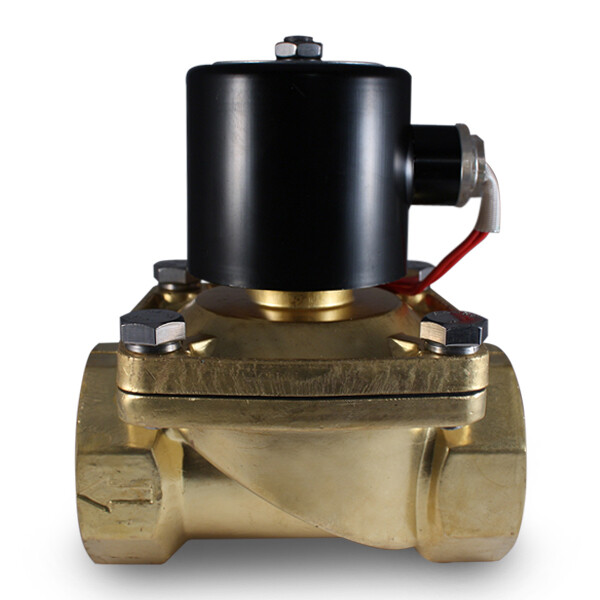

2″ Inch 12V DC Brass Electric Solenoid Valve 12 Volt VDC – FREE SHIPPING
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Not specified |
| MPN | Does not apply |
| Material | Brass |
| Operation Type | Normally Closed |
| Port Size | 2'' Inch |
| Temp Range | 15 – 250F |
| Voltage | 12 Volts DC |
Untitled Document Normally Closed – Opens when power is applied Gravity Feed Capable – No Minimum Pressure 12 Volt DC Solenoid Valve Function Normally Closed Connection 2” Inch FNPT Temperature Range 15 – 250°F Pressure Range 0 – 90 PSI Power Requirements 40 Watts *Suitable Media Water – Air - Etc Specifications Body Material Brass Components Stainless Steel Seal Material Viton® Diaphragm Operation Type Semi-Direct Lift Valve Coil Connection 5.5" Lead Wire Orifice Size 50 mm Cv Value 45 *Duty Cycle 100% but not indefinitely Weight 7 lbs Height 6.50" Length 5.30" port to port Width 4.25" Connection – No Polarity, + and – can be interchanged. The valve timing is uncertain, however it is fast acting. Less than one second. Mounting position is preferably coil up but can be mounted in any position. *Consult a chemical compatibility expert for correct seal and valve body material choice. *Duty Cycle – Like most solenoid valves the coil will become hot to the touch when left on continuously. The temperature will stabilize without failure. Leaving the valve powered on for long periods of time will reduce the life of the coil. Whenever possible the valve should be installed in a well ventilated are to increase the life of the coil. The valve is not intended to be left energized as a fail-safe for power outages. In this case please contact us for other options. A pre-filter is always recommended to keep the diaphragm free from debris and the valve functioning properly. Listing and template services provided by inkFrog
