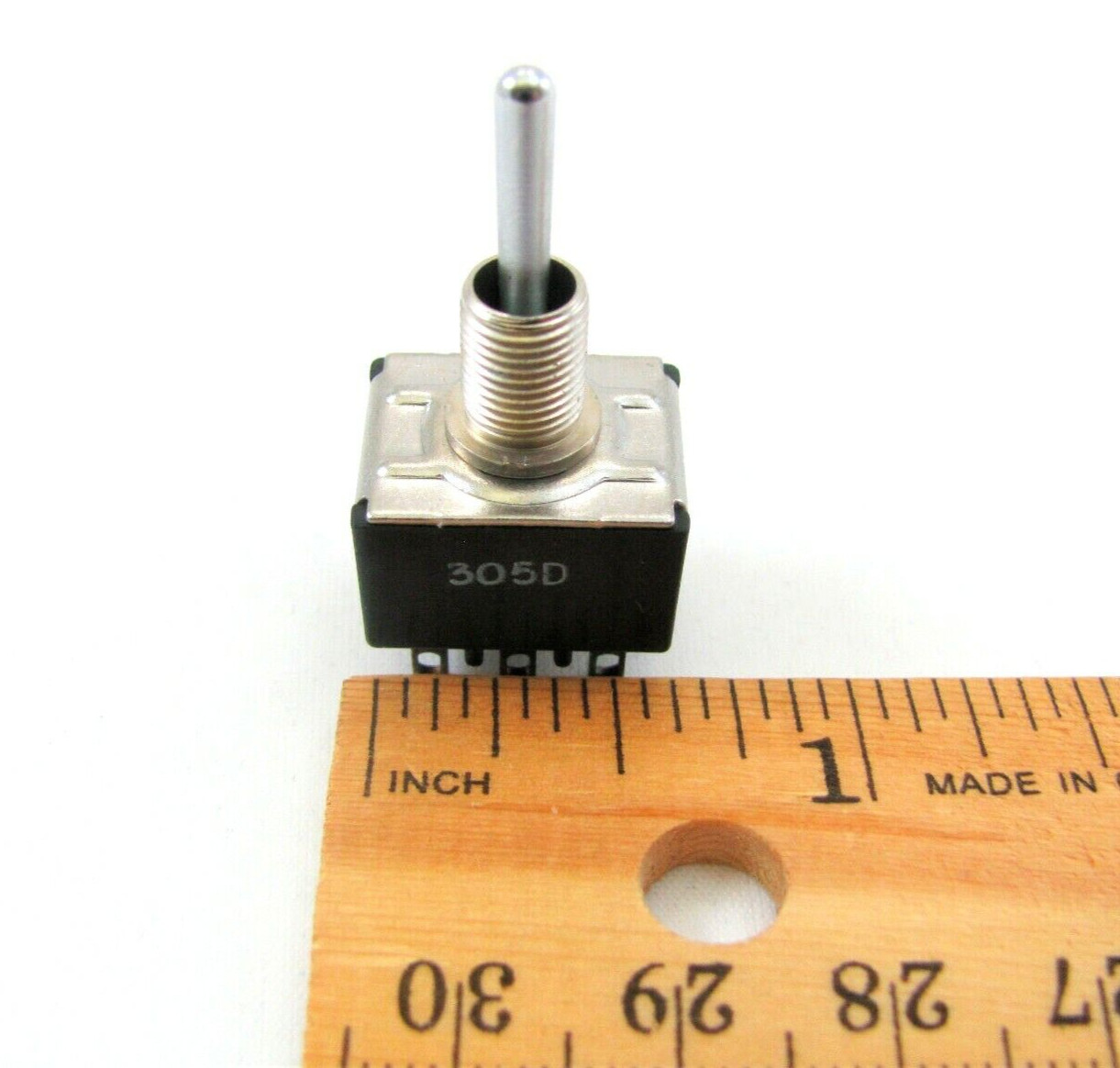

(25x) 3PDT On-None-On 5A 120VAC / 28VDC – 2A – 250VAC Toggle Switch – Solder
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Panel |
| Timer Control | None |
| Maximum Amperage | 5 A |
| Color | Silver |
| Actuator Type | Standard |
| Current Rating | 1-15 A |
| MPN | 305D |
| Switch Style | Toggle |
| Orientation | Horizontal/Vertical |
| Smart Home Compatibility | Not Applicable |
| Suitable For | Interior |
| Brand | Raytheon |
| Operation Method | On-None-On |
| Switch Action | Maintained |
| Type | Miniature Toggle Switch |
| Termination Type | Solder |
| Features | Miniature |
| Panel Cutout Shape | Circular |
| Country/Region Of Manufacture | United States |
| Smart Home Protocol | Not Applicable |

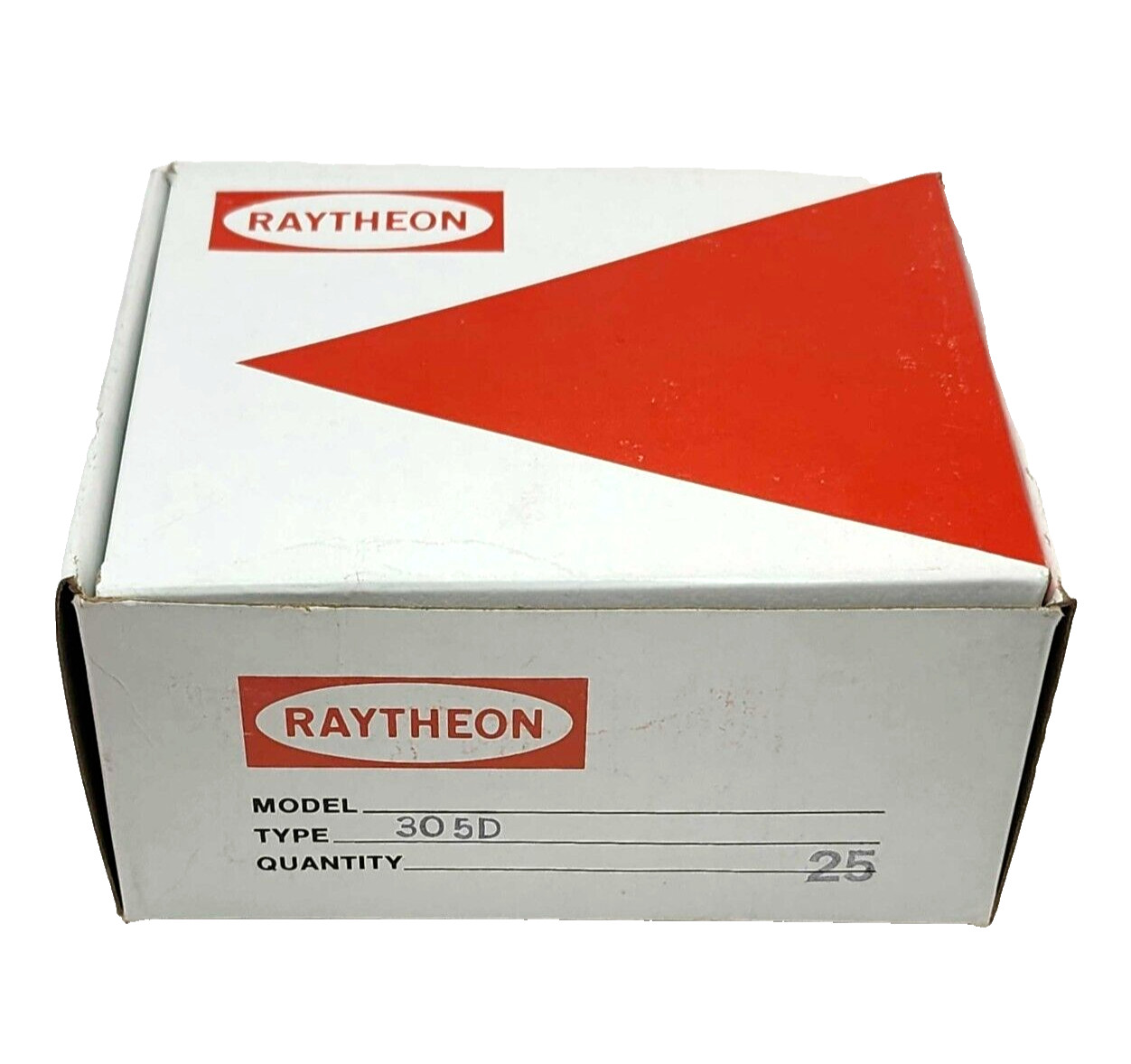

Free eBay listing template designed by dewiso.com RAYTHEON 305D 3PDT Toggle Switch * On - None - On * Rear panel mount * 5A @ 120VAC or 28VDC . 2A @ 250VAC * Miniature toggle * 0.41" toggle (above bushing) * Solder terminals * Sold as 25 switches per lot Barbey Electronics' Guide to Deciphering Switch Descriptions: Switches will come with the description: _P_T. The 'P' stands for 'pole' and the 'T' stands for 'throw.' 'Pole' refers to the number of parts/circuits/rows of pins being connected by the switch, while 'throw' refers to the number of positions/possible connections offered by the switch. To that effect, a switch described as 'SPST' - single pole, single throw - will connect and disconnect one pin from one other pin. examples: SPST (single pole, single throw) DPDT (double pole, double throw) 3P3T (triple pole, triple throw) etc. * As far as the 'ON-OFF' information goes, anything with a parenthesis around it is momentary (i.e. the switch only stays in the position while being physically held there, when you let it go it will snap back to its previous position), while anything without a parenthesis is maintained (the switch will remain in this position until it is physically moved again). That means a DPDT switch described as (ON)-OFF-ON would make a momentary connection when pushed in the first direction and a maintained connection when pushed the other way. When put in the middle, the switch will disconnect. Similarly, 'NONE' means that the position is skipped/omitted/not used. A DPDT switch described as ON-NONE-OFF will perform like an ON-OFF DPST switch. _______________________________________________________________________________________________________________________________ We offer shipping discounts on combined purchases for eligible items. Use the "Add to cart" button instead of "Buy It Now". When done, click on the cart icon in the upper right corner of the screen to view your selections. Click on "Request total from seller" and you'll soon receive a revised eBay invoice from us with a combined shipping discount, when available. Other shipping Options available, we will gladly combine multiple orders. Contact us with any questions. Please note that we have locations in Ohio and Pennsylvania and are required to charge sales tax in both states; if you live in one of these states, please wait for us to send you an invoice. International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying Payment is expected within 3 days. Thanks for looking!
