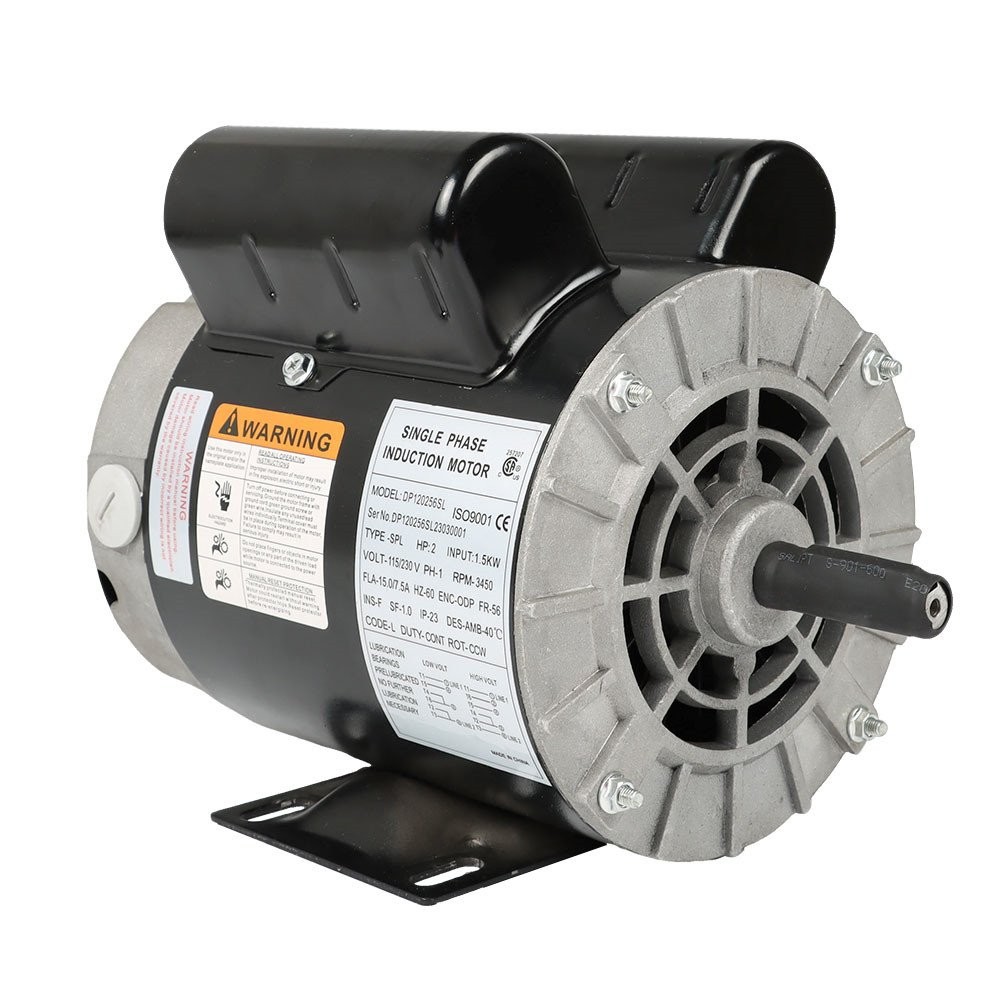

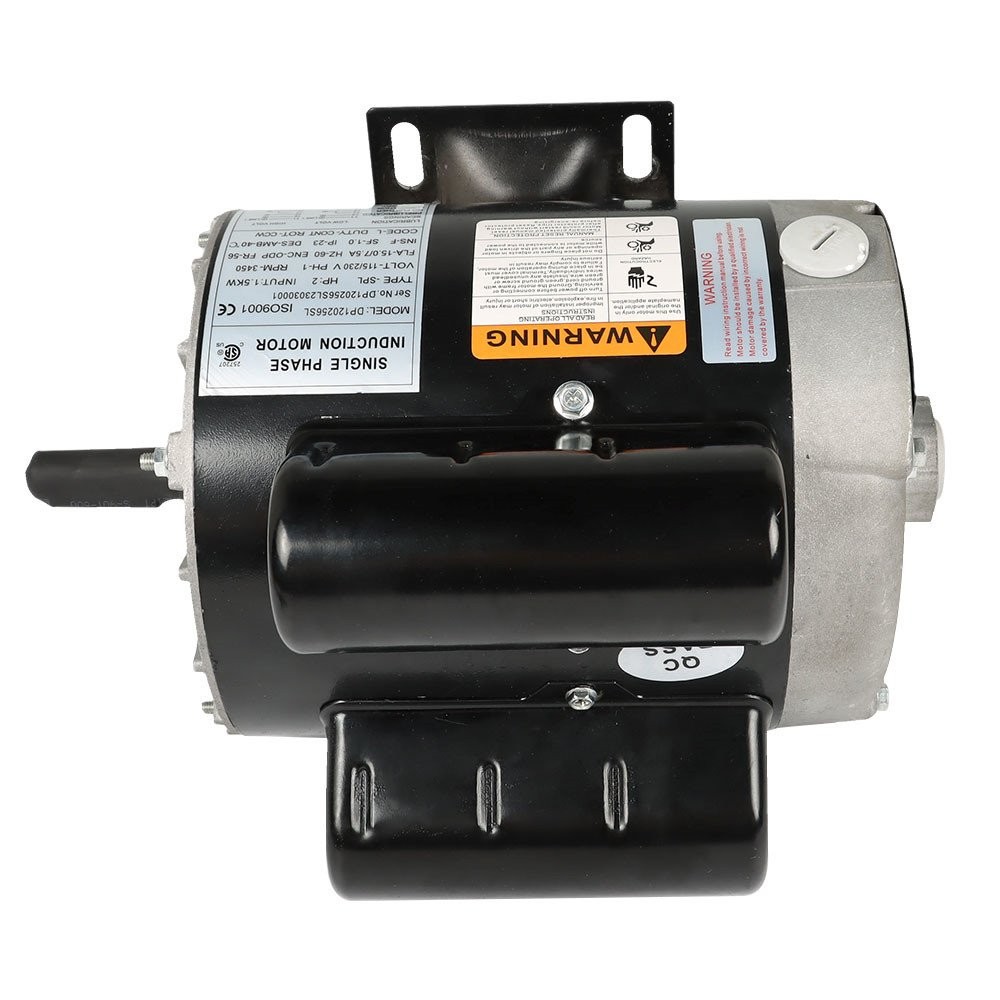

3450 RPM 2 HP SPL Compressor Duty Electric Motor 5/8″ Shaft 115/230 Volt 56Frame

3450 RPM 2 HP SPL Compressor Duty Electric Motor 5/8″ Shaft 115/230 Volt 56Frame

USD 120.15 USD

SKU: bTgKta1Y

Brand: findmall

MPN: IN2936934AL

GTIN: Does not apply

Condition: New

Tags: 1 Year 1.00 1.88 115V/230V 12.3 2 HP Single Phase Motor 3/16" 3450 3450RPM 5/8 in 56 Frame Electric Motor 60 Hz 9.75" Base-Mounted Black findmall General Electric Motor IN2936934AL Keyed Non-Reversible Not Protected ODP (Open Drip-Proof) Single Phase Single Phase Motor

Categories: Metalworking Equipment

Specifications

Brand	findmall
MPN	IN2936934AL
Shaft Diameter	5/8 in
Enclosure Type	ODP (Open Drip-Proof)
Model	General Electric Motor
Nominal Rated Input Voltage	115V, 230V
AC Phase	Single Phase
Service Factor	1.00
AC Frequency Rating	60 Hz
Reversible/Non-Reversible	Non-Reversible
Mounting Type	Base-Mounted
Shaft Type	Keyed
Protection Against Liquids	Not Protected
Base RPM	3450
Style	2 HP Single Phase Motor
Color	Black
Features	Single Phase Motor
Design	56 Frame Electric Motor
Shaft Length	1.88"
Overall Length W/O Shaft	9.75"
Overall Length With Shaft	12.3"
Standard Size Keyway	3/16"
Manufacturer Warranty	1 year

Feature: Open Drip Proof (ODP) Enclosure Single Phase 2 HP 3450 RPM 60hz 115/230 Volts AMB 40 °C Frame: 56 Duty: Cont. Compressor Service Factor: 1.0 Full Load Amps: 15/7.5 INS. CL: F Non-Reversible, CCW Rotation Facing Shaft Thermally Protected Overall Length W/O Shaft: 9.75" Overall Length With Shaft: 12.3" Overall Height: 8.5" Overall Width: 6.35" Shaft Diameter: 5/8" Shaft Length: 1.88" Standard Size Keyway: 3/16" Features Manual Reset Overload Protection Description： .
